Customizable Automatic Punching Line for Small / Large Metal Sheets With Waste Collection
Automatic Punching Line: From Decoiler to Recoiler or Cut-to-Length – Streamline Your Metal Stamping Process
If you're looking to boost efficiency in metal stamping and punching operations, our Automatic Punching Line (covering decoiler, processing, and optional recoiler or cut-to-length) is the ultimate solution. Designed for continuous, precise production, this line eliminates manual bottlenecks and ensures consistent quality for a wide range of metal parts.

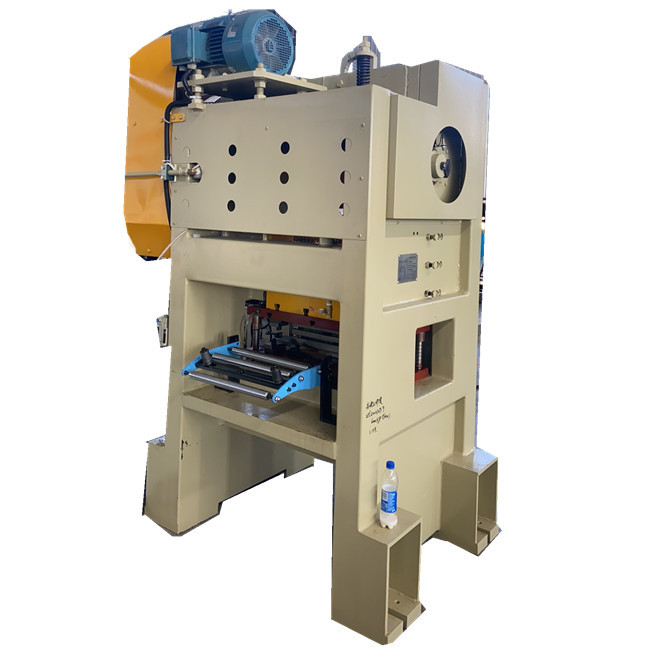

Core Equipment: Progressive Die Punching Machine – Precision at Its Core
At the heart of the automatic punching line lies the progressive die punching machine —the key to high-speed, accurate metal processing. This machine turns raw metal materials into your desired parts with two standout advantages:
- High Precision: Delivers tight tolerances to meet strict part specifications, ensuring every piece matches your design requirements.
- High Speed: Enables continuous stamping without interruptions, significantly ramping up production output compared to manual or semi-automatic setups.
Crucially, the punching process is fully tailored to your needs: we configure the machine based on your drawing profiles, including the type, size, and position of holes you need to punch. Whether it's simple round holes or complex custom shapes, the line adapts to your exact specifications.
Seamless Material Flow: From Decoiler to Feeding
To keep production running smoothly, the line is equipped with essential components for uninterrupted material handling:
- Decoiler Integration: Starts with a decoiler that unwinds metal coils (the raw material) evenly, preventing tangles or material damage—laying the groundwork for consistent feeding.

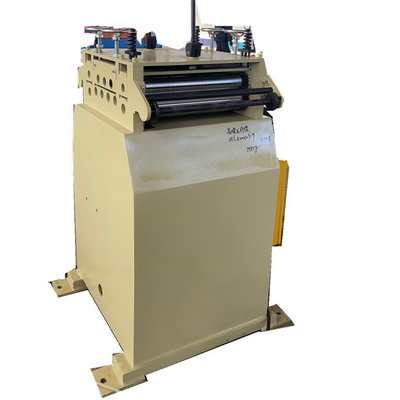

- Automatic Feeder: Transports metal strips from the decoiler (or feeding tray) directly into the progressive die punching machine. Equipped with sensors, it automatically detects the strip's position and length, adjusting feeding speed and alignment in real time. This ensures accurate, consistent feeding —a critical factor in avoiding errors during stamping.
Flexible Post-Punching Options: Choose What Fits Your Workflow
After punching, the line offers two customizable end-of-line solutions to match your production needs:
- Cut-to-Length: For applications requiring individual, flat metal parts (e.g., small sheets or finished components), the line trims the punched metal strip to your exact desired length.
- Recoiler: If you need the punched metal to remain in coil form (e.g., for subsequent processing steps), the recoiler neatly winds the finished strip back into a coil—saving space and simplifying storage/transport.
Automatic Waste Collection: Boost Efficiency & Cleanliness
The line also includes an automatic collection system to keep your workspace organized and production efficient:
- Composed of a dedicated collector and conveyor belt, this system gathers waste, scraps, and residues generated during punching.
- It automatically transports waste to designated disposal areas, eliminating manual cleanup, reducing downtime, and improving overall workshop hygiene.
Tailored to Your Scale: Small Thin Sheets & Large-Scale Production
We understand that punching needs vary by project size—and the line is fully scalable:
- Small Thin Sheet Lines: For processing thin, lightweight metal sheets, all components (from the punching machine to feeders) are downsized to match, ensuring precision without unnecessary bulk.
- Large-Scale Lines: For heavy-duty or high-volume projects, we offer larger, more powerful punching/pressing machines to handle thicker metals or higher throughput.
- Direct Coil-to-Plate Design: We can also customize the line to convert metal coils directly into plate-shaped parts —skipping extra steps and further streamlining your workflow.
See It in Action: Watch the Working Video
Curious how the automatic punching line operates in real production? We've prepared a detailed working video that walks you through the entire process—from decoiling and feeding to punching, post-processing (recoiler/cut-to-length), and waste collection. Contact us to request access and visualize how the line can fit into your operations.
Get Customized Support Today
Whether you need a line for small thin sheets, large-scale production, or have specific requirements for hole types or post-punching handling, we can tailor the automatic punching line to your needs. For more details, to ask questions, or to watch the working video, reach out to our team anytime—we're here to help optimize your stamping process.
