Automatic PU Sectional Garage Door Line

Büyük resim : Automatic PU Sectional Garage Door Line

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	ZTRFM
Sertifika:	CE
Model numarası:	Ztac

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	under discuss
Ambalaj bilgileri:	Anti-yağ paketi ile çıplak
Teslim süresi:	90 iş günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 30 Set

İletişim

Automatic PU Sectional Garage Door Line

Açıklama

Vurgulamak:

automatic PU sectional garage door line

sandwich panel production line with warranty

garage door manufacturing equipment automatic

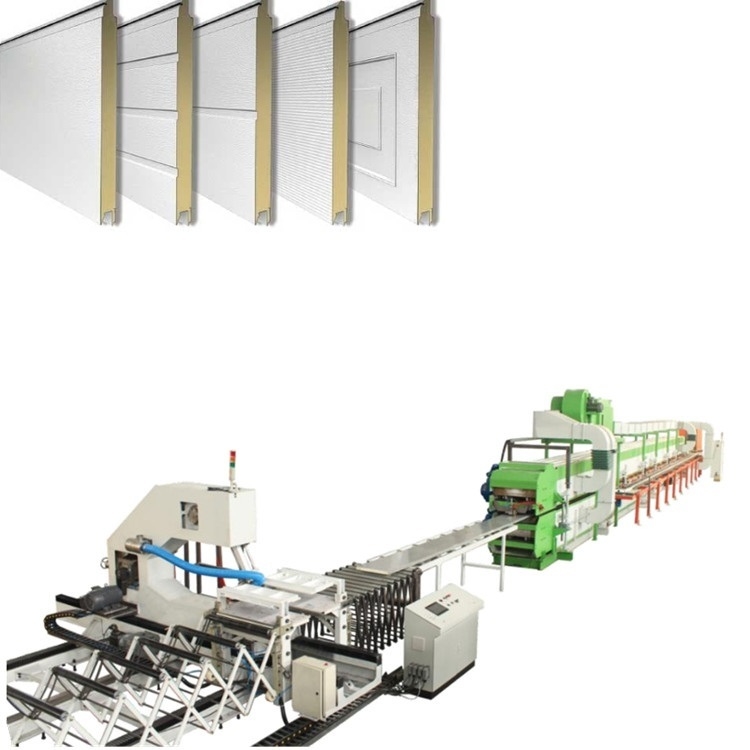

Automatic PU Sectional Garage Door Line

The Automatic PU Sectional Garage Door Line is designed for batch production of sectional garage doors with full automation. Sectional garage doors offer cost-effectiveness and enhanced security due to their panel design, making them a popular choice in residential and commercial applications.

Product Overview

Working Flow

Machine Components

Hydraulic un-coiler (5 tons)
Film covering
Embossing
Rib rollers

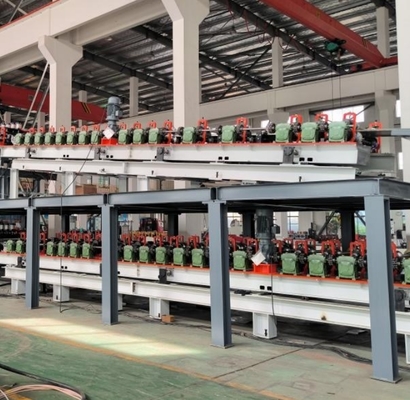

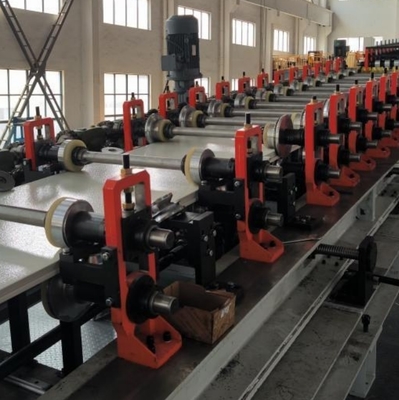

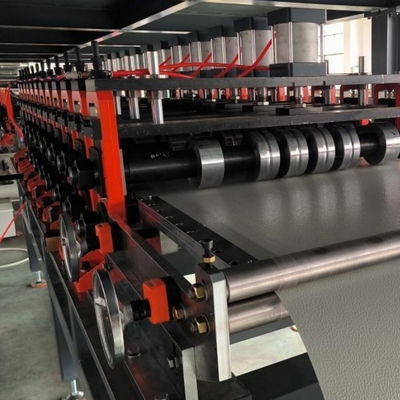

Upper panel roll former/Down panel roll former
Double layer construction platform
Double bridge device and conveyor
Electrical control system

High Pressure Foam Machine

High pressure continuous foam machine

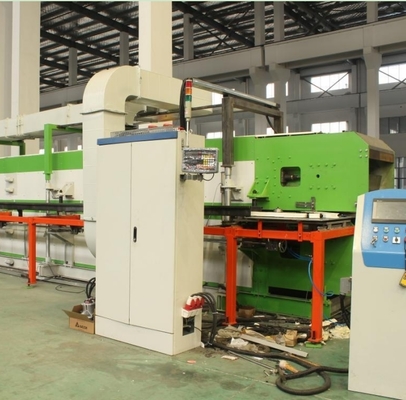

Double Belt System

Double belts system 24M
Chain supporting system of two side
Plastic mould for one size (40mm)
Heating circulation for double belts

Cutting System

Band saw cutting
Conveyor with output table

Key Features

Molding frame for durable and accurate working
Gearbox transmission system
Rollers material: CR 12, HRC 60. Chrome coated: 0.03-0.05mm, Strength (MPA): 70 tons, 800 MPA
Shaft: diameter 60 mm, material is #45 steel. Quenched hot treatment. Strength of the main shaft (MPA): 70 tons, 650MPA

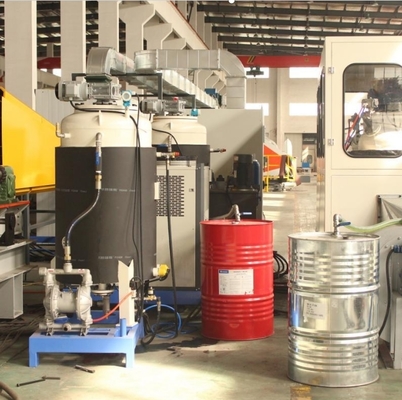

Foam Making Machine

Available in high pressure type or lower cost slow speed option. The high pressure metering machine handles two main components (polyurethane and ISO) and two additional components.

Function Description

The polyurethane mixture from the buyer's tank is delivered to the high pressure mixing head via axial piston pump in a closed circuit with spring loaded nozzles. Isocyanate is similarly supplied. Mixing occurs via counter injection process (stream impingement) through spring loaded nozzles, with foam applied to the lower facing layer via special application nozzle.

Technical Data

Parameter	Value
Pump output	Adjusted to double length and line
Speed	Foam pressure: max. 220bar/min. 60 bar 12CC PUMP
Viscosity	max. 3.000mPas

Double Belt Heating System

Precise heating of double belt slats is critical for processing CFC-free foam systems. The system maintains constant surface temperature separately for upper and lower slat chains through circulating hot air.

Technical Data

Parameter	Value
Slat temperature	max.60°C
Temperature accuracy	± 3°C
Heat-up time (20 to 40 °C)	approx. 2 hours
Required heating power	2 x 80kW

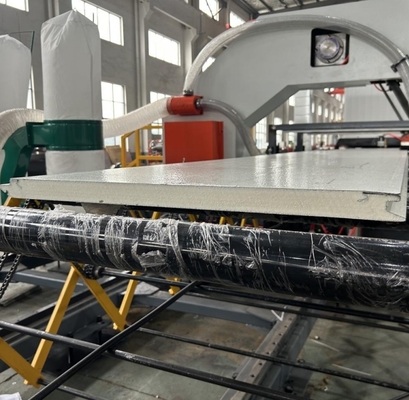

Shearing System

The cutting length is infinitely adjustable within specified range. Saw height is manually adjustable, with diagonal axes maintaining position relative to moving panel for precise rectangular cuts.

Technical Data
